Sources Data, Voice and Power with Raised Floor
Pedestal Grid.
Provides easy visual inspection and
relocatability.
Earthed via all metal fixings.
Various width / heights to meet any job
specification or cable loading.
Fixings available to provide structured exit of
cabling from cable tray (eg. 25mm flexible
conduit)
Cables can exit from above, beneath, and sideways
with confidence as there are no sharp edges.
Negates Power / Data Drop from Sagging or
Unsupported Cables.

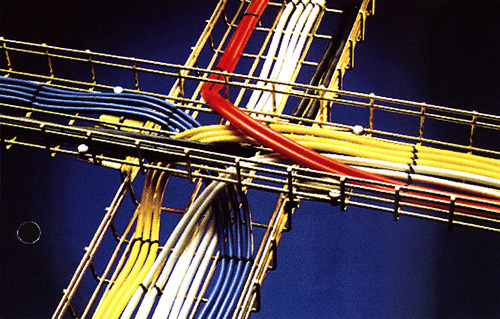

Crossover
50mm corner piece / 25mm corner piece
Condut Take Off Plate
50mm take off bracket / 25mm take off bracket
Suspension Clamps
Bolt
Nut
50mm Single Straight piece/ 25mm Single Straight
piece
Snap On leg
50mm right feet
25mm right feet
Hold Down Clamps
50mm Single Straight piece/ 25mm Single Straight
piece
Cabletray
25/Cabletray 50, the basic straight section
component in the CABLETRAY system. Formed with a
side wall depth of 25mm (Cabletray 25), 50mm
(Cabletray 50). Fabricated from mild steel wires
to (B.S.970) Grade 040 A04. Using 4mm diameter
rods in both directions to form the cable basket.
CABLE
BASKET
Size:
470mm (W) x 25mm(H) x 3m (L)
470mm (W) x 50mm(H) x 3m (L)
220mm (W) x 25mm(H) x 3m (L)
220mm (W) x 50mm(H) x 3m (L)
Cable Management System
